Coeur d Alene CSCP-C10 & CSCP-275L















































































































































Specifications

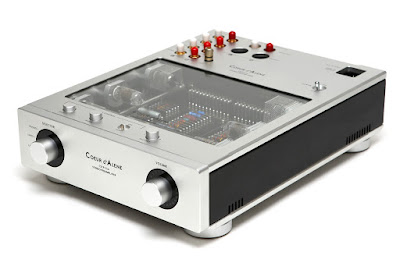

CSCP-C10

Circuit
Tube Stereo Pre Amp

Input Impedance
Line/Phono 50kOhm

Input Terminal
Line RCA Unbal. x 3, Phono x 1

Input Sensibity
120mV(Line level inputs), 5mV(MM, Phono input)

Output Terminal
RCA Unbal. x 1, XLR Bal. x 1

Output Impedance
270Ohm/Unbal

THD
0.05% (Line input)

Crosstalk
-75dB or less

RIAA Response
0.3dB(20Hz ~ 20kHz)

Tubes
5670 x 2, 5965 x 4

Power consumption
70W max

Dimension & Weight
290W x120H x 405D, 8.6kg


CSCP-275L

Circuit
AB Class UL push-pull by Beam Pentode

Input Impedance
47kOhm

Input Terminal
RCA Unbalanced x 1, XLR Balance x 1

Input Sensibity
1V for both of Balance and Unbalanced

Output Power
75W + 75W RMS Continuous

Output Impedance
8Ohm

Freq. Response
20Hz ~ 70kHz/-2dB

THD
0.1% (1W/8Ohm)

NFB
6dB

Tubes
KT88 x 4, 6414 x 4, 6922 x 2

Power consumption
340W max

Dimension & Weight
435W x180H x 405D, 23kg Including grill cover
