Specs:
Two Rca inputs switchable from the rear panel; Rca and XLR output.
Gain: 66 – 60 – 54 dB, selectable by internal dip-switches.
Cartridge load: via Rca blind plugs: 100, 220, 330, 470, 750, 1000 Ohm.
Weighted signal/noise ratio: > 80dB @ 1mV input.
Harmonic distortion: < 0.05 %.
RIAA equalization frequency response: +/- 0.1dB.
Headroom (maximum undistorted output level) over 25 Vrms.
Output impedance: 250 Ohm, low value ideal for driving even line preamplifiers or integrated amplifiers with critical impedances starting from 2500 Ohm.
Tubes: 12AY7 and ECC83, low noise cascode amplification stage;
E88CC equalization network driving stage;
ECC82 additional amplification stage;
E88CC buffer stage for output driving.

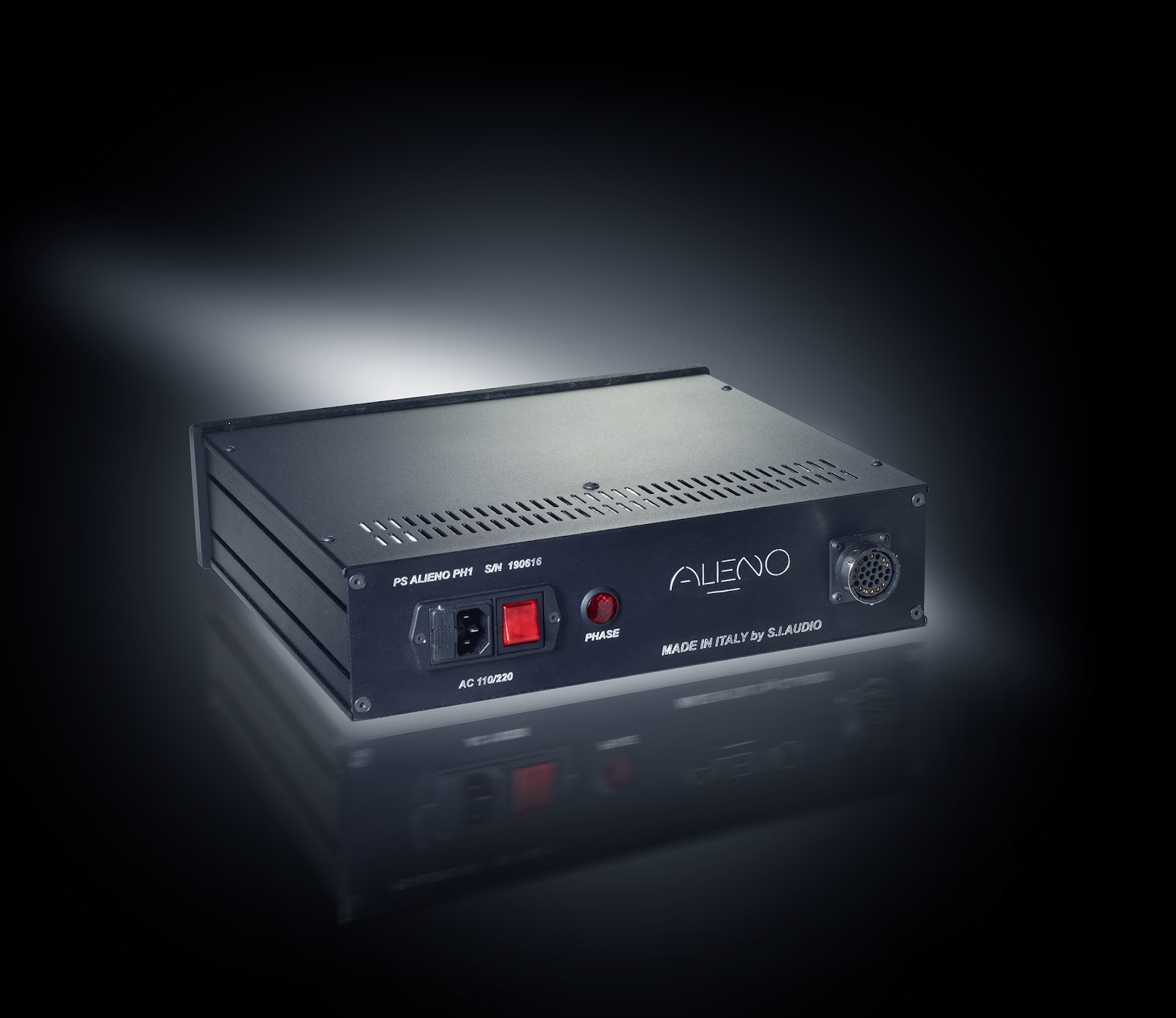

Power supply unit with Virtual Battery Powered technology: 240-115 V~ ±10% / 50-60 Hz
Main fuse: T1 Ampere (T2 Ampere for 115 V).
Power consumption: approximately 80VA.
Amplifier section dimensions: L x D x H, cm/inch. 45/17,7” x 41/16,1” x 18/7”, weight 12 kg – 26,4 lb.
Power supply section: L x P x H, cm/inch. 33/13” x 32/12,6” x 10/4”, weight 9 kg – 19,8 lb.
