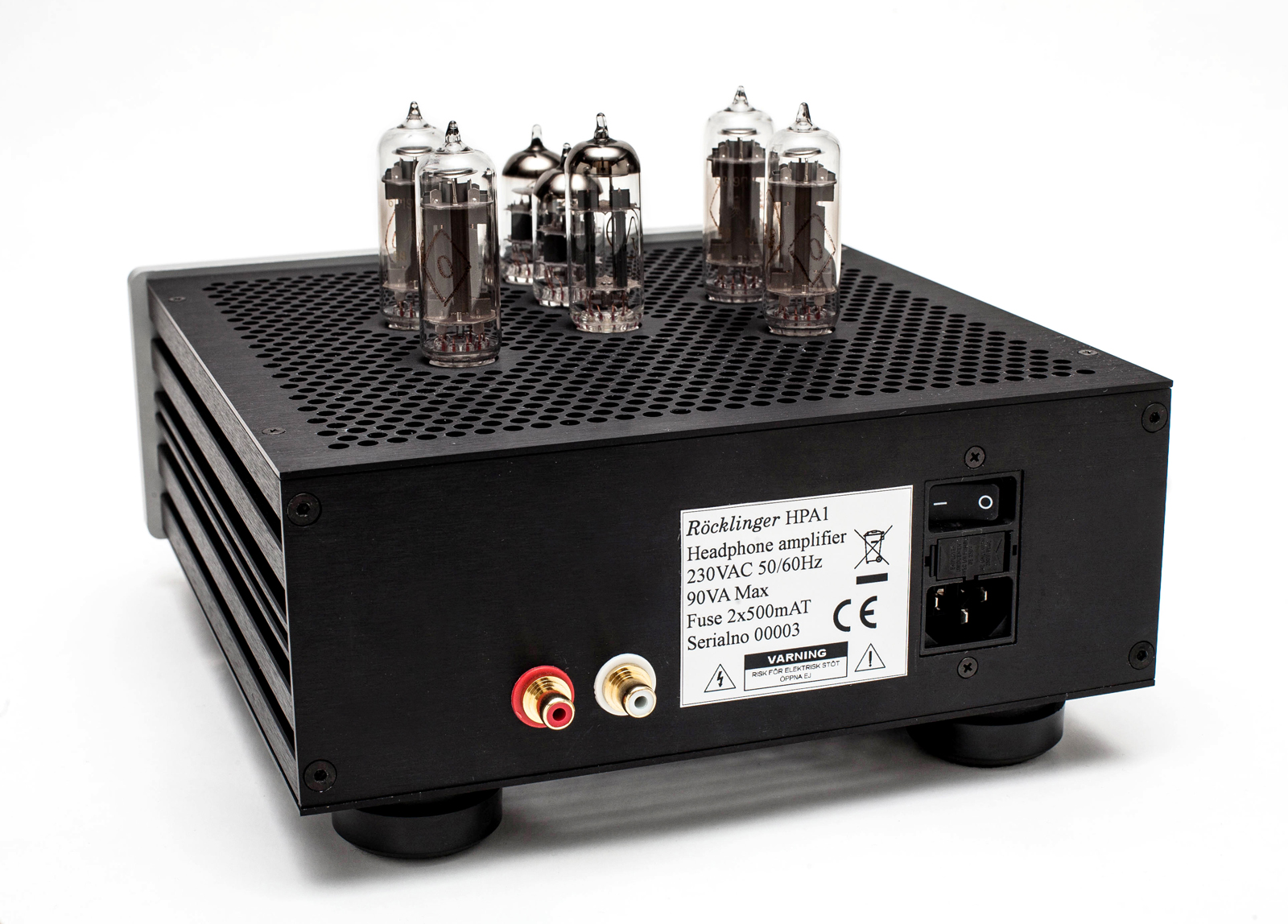

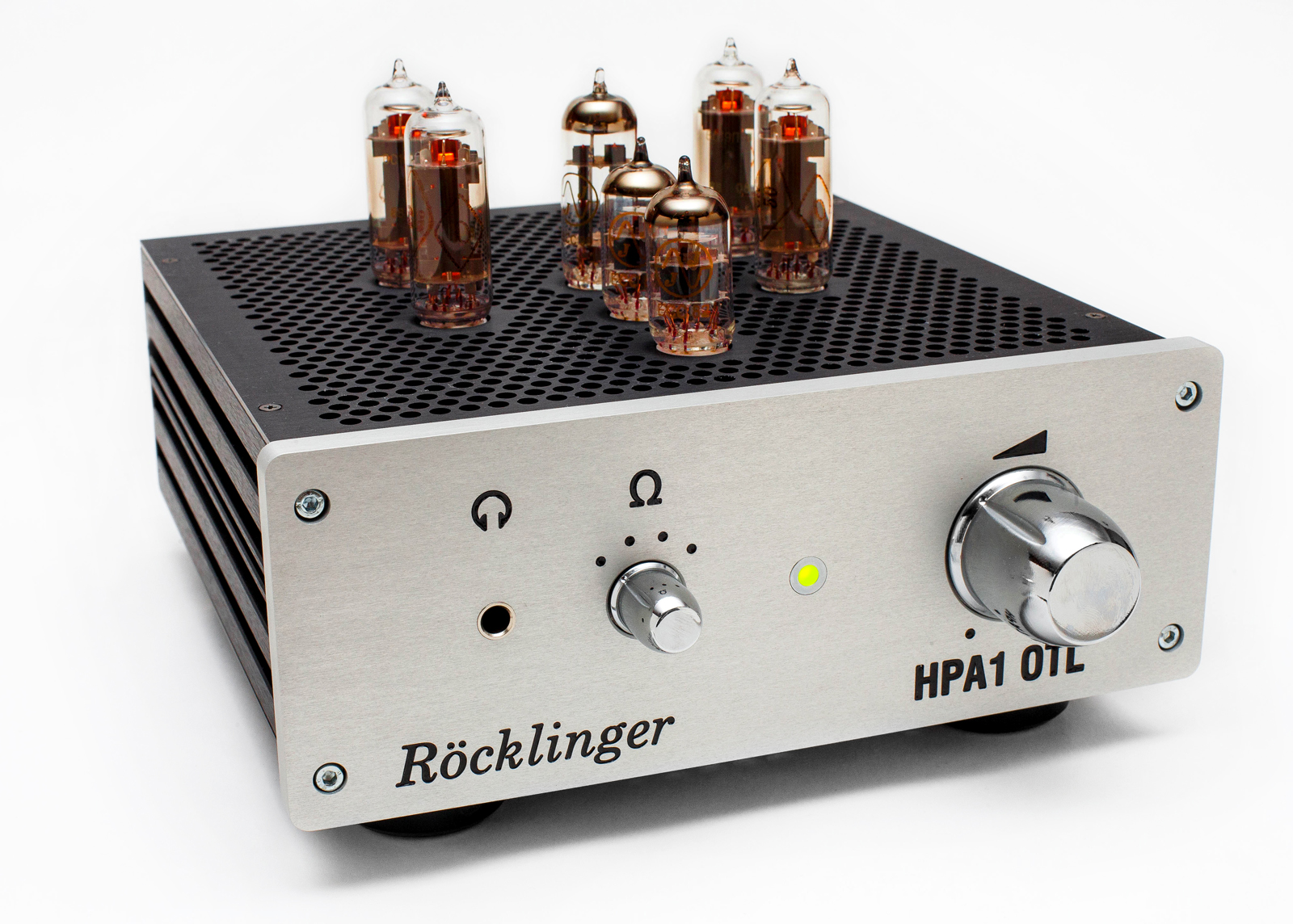

Röcklinger HPA1 OTL














































SEK 22500

Specs:

Pure Tube® OTL – without output transformer and caps
Dual mono
high quality potentiometer
6,3mm stereo jack
Impendance: 30, 60, 300 och 600 ohm
Tubes: 2 * ECC82, 1 * ECC99, 4 * 6C19
Power output 0,8W 30 ohm, 1,2W 60 ohm, 1,9W 300 ohm, 1,7W 600 ohm at 1kHz 1%THD
30, 60 ohm class AB1, 300, 600 ohm class A

Frequency range 10 – 650 000 Hz -3dB
Damping factor >10
Distortion 0,14% 300ohm @ 1,0Vrms in @ 1000Hz
Maximal input signal 2,2Vrms


115/230V (50/60Hz), 90VAC
Oversized 120VA toroid transformer
Dimensions 230x230x80
Weight 4,8 kg
